Rich. Full. Deep.

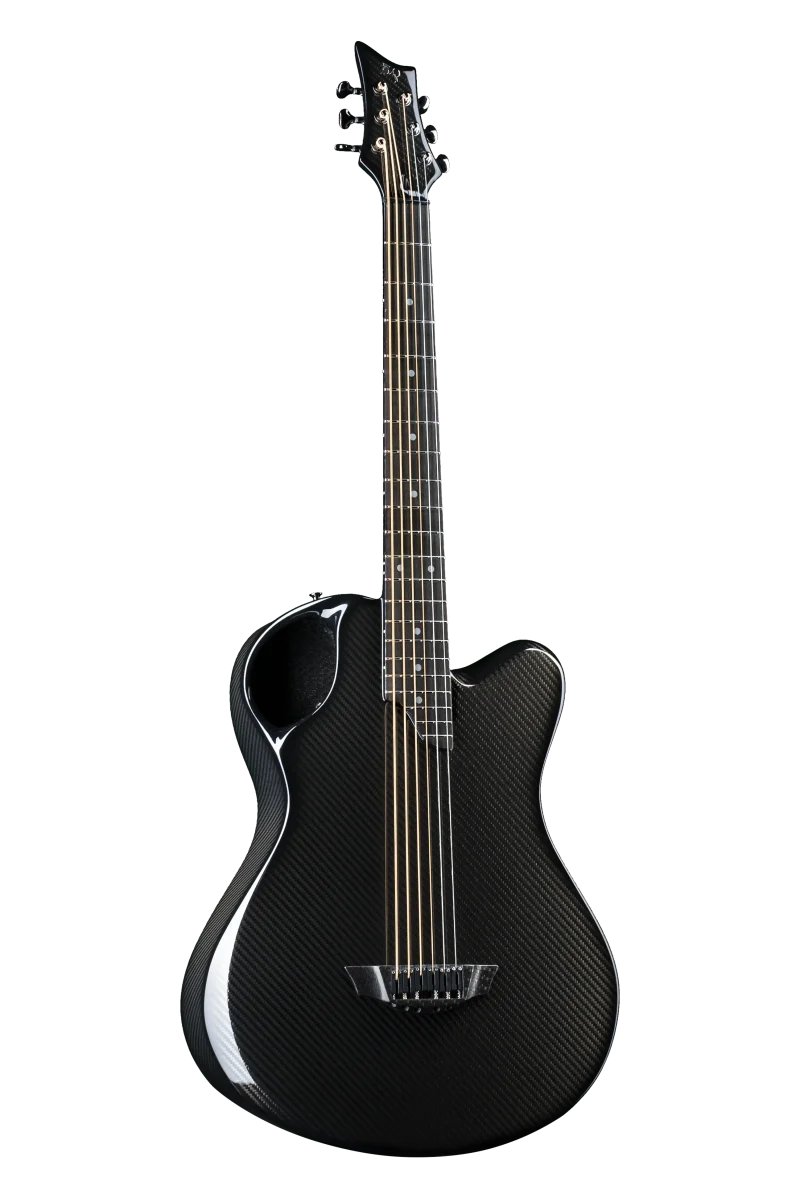

The X20 Baritone takes the X20 even further. And deeper. It has everything the X20 offers, with the addition of a singular, deep voice. The much-lauded Emerald soundhole design and positioning accentuate the bass notes perfectly.
This acoustic baritone guitar has raised the bar for lower baritone tunings, projecting an exceptionally full sound from its carbon fiber body to player and audience alike. With an extended 27ā³ scale and innovative laminate structure, the X20 Baritone produces a powerful deep and rich, bottom-end tone ā and remarkably, it does all this without creating excess tension in the treble strings.
X20 Baritone Specifications
1. Gotoh 510 tuners 18:1 ratio
2. Graphtech low friction nut
3. 21 medium stainless steel frets
4. Inlay Options
5. Innovative neck design
6. Offset acoustic soundhole
7. Pick-up options
– LR-Baggs Element
– Ghost Piezo
– Ghost Piezo with K&K Contact Pickup
– Hyvibe
– HiFi Duet
8. Bridge Options:
– Pinless Carbon Bridge
– Carbon Bridge Fully Adjustable for Height and Intonation
| Scale length | 27″ | 685mm |
| Nut Width | 1 Ā¾” | 44.5mm |
| Bridge Spacing | 2 Ā¼” | 57mm |
| Overall Length | 39Ā 31/32“ | 1015mm |
| Max Body Width | 15 Ā¼” | 390mm |
| Max Body Depth | 4 Ā¾” | 120mm |
| Max Body Length | 19″ | 480mm |
| Frets | 21 medium stainless steel frets | |
| Fretboard Radius | 16ā | |
| Nut/Saddle | Graphtech low friction nut and saddle | |
| Finish | High gloss finish on all surfaces | |
| Strings | Daddario EXP-23 Phosphor Bronze | 0.16, 0.22, 0.29, 0.48, 0.60, 0.70 |
| Case | Hiscox Custom Lite Flite hard case | |
| String Gauges | .016, .022, .029, .048, .060, .070 (D’Addario EXP23) |
X20 Baritone's Voices
Blues (Mic)
Country (Mic)
Fingerstyle (Mic)
Picking (Mic)
Strumming (Mic)
Medley (Pickup)
PICKUP CONTROL GUIDE
Click a pickup option below to view the control guide
LR Baggs Element
Graph Tech Ghost Piezo
Ghost Piezo with K&K contact pickup
HiFi Duet pickup
FEATURES & BENEFITS
Offset Soundhole
Our unique soundhole design brings a whole new listening experience by projecting the sound more directly towards the player while still providing great forward projection to the audience
Plek'd to Perfection
Every guitar goes through the cutting edge Plek process which scans the frets of the guitar and machines them to perfection taking into account radius, relief,action height and string gauge. This process guarantees ultimate accuracy and playabilityĀ
Neck Design
Our carbon fiber necks provide strength stability and accuracy. Featuring a double action truss rod for perfect adjustability and stainless steel frets giving ultra smooth feel and wear resistance
Ergonomic Body Design
Our Moulding technology provides us the freedom to create a wonderfully ergonomic body design featuring the extended neck access, asymmetric side design, rib and forearm bevels which all combined give unprecedented comfort to the player
Tuners
We use the highest quality Gotoh 510 tuners across our range with 18:1 ratio and unsurpassed build quality
Carbon Fiber Bridge
We machine our unique bridges from a solid billet of carbon fibre creating a beautiful aesthetic design that transfers the string energy efficiently into the soundboard
Hi-Tech Carbon
Carbon fiber is now used in all the most high tech industries from Aerospace to Formula one Racing whereĀ strength and weight is paramount. In fact it was in Formula One Power Boat racing that we discovered that the properties of carbon fiber are also perfectly suited to guitar making creating a lightweight structure that holds up under the tension of the strings while resonating freely with the lightest touch.
Weather Resistant
If you have ever traveled with a guitar you will know just how much temperature and humidity changes can effect the structure, tuning stability and tone of a guitar. This is where carbon fibre construction really excells. Now you can take your guitar from a cold car to a warm stage without worrying that your going to go out of tune after the first strum.Ā
Unique Manufacturing Process
Intricacy is our excellence. Our signature one-piece moulding process delivers a guitar that is both incredibly strong and stable, resulting in fewer trips to your local luthier. The entire neck and body of Emerald Guitars are moulded together resulting in no joints becoming weak or failing over time whilst delivering impeccable resonance and sustain.
The Emerald 3D Guitar Builder is the worldās most advanced custom design platform, with more options than you can shake a guitar pick atā¦
Design your dream guitar down to the last detail with the Emerald 3D Guitar Builder. Want to change your guitarās color and hardware? No problem! Want to choose from over 40 veneer types to make your guitar truly unique? You got it!
But thatās just the beginning. The Emerald 3D Guitar Builder lets you choose from a variety of pick-ups, strings, neck widths, fret radius, and scale lengths, so you can create the guitar that feels and sounds just right for you.Ā
And with an interface thatās as intuitive as it is fun, you can design your dream guitar in no time at all. So, whether youāre a seasoned pro or a beginner, let your imagination run wild and get ready to rock out with your very own custom-made Emerald Guitar!
Colour Options
Customize your guitar using our 3D Builder to select between standard or vibrant weave carbon fiber options.
Standard weave offers a darker pattern, while vibrant weave boasts a brighter, more lively pattern, accentuating a broader array of tones across the available colors.
With up to eight color choices available to complement the carbon fiber on each model, our 3D Builder is the ultimate canvas for personalization.
Real Wood Veneer
While tone is key, aesthetics are an important consideration inĀ guitar design. Some players love the look ofĀ carbon fiber,Ā and its aesthetic impact.Ā
OVER 40
VENEER
TYPES
Others prefer the wood look. If youāre a fan of beautiful veneers, we have a remarkable and ever-changing selection of over 40 real wood veneers.
Your chosen veneer will be crafted into the top of the instrument for the best of both worlds: the stability and reliability of our carbon fiber construction and the natural beauty of an exotic wood veneer.
Pickup & Bridge Options
We painstakingly choose the finest pickups in the world to suit our playersā needs, and to best deliver the exceptional tone of each instrument.
Each Emerald model has its own distinct voice. Our 3D Guitar Builder will guide you in choosing the most suitable pickups for your guitar.
Emerald Inlay Design
Make your guitar yours with a selection of custom neck inlays. A range of patterns are available, many of which feature Celtic designs, in a nod to Emerald Guitarsā Irish heritage and the rural landscape in which the instruments are crafted.
You can also customize a message on the 12th fret, adding an extra layer of personalization to your dream guitar, making it uniquely yours.
A New Era of Custom Guitar Design
When choosing the elements for each part of your custom guitar, youāll see the updated choices live-as-you-go in the 3D Builder. You can even change the environment in which you view the guitars, switching from a standard white studio background to the Emerald Cottage, to see how your guitar looks in different scenarios.
Reinvigorating my desire to play guitar
The X20-Baritone sounds fantastic and is very comfortable to play. Itās reinvigorating my desire to play guitar and just love the deep rich sound it has
- By Joe Olsen
